TEST EQUIPMENT

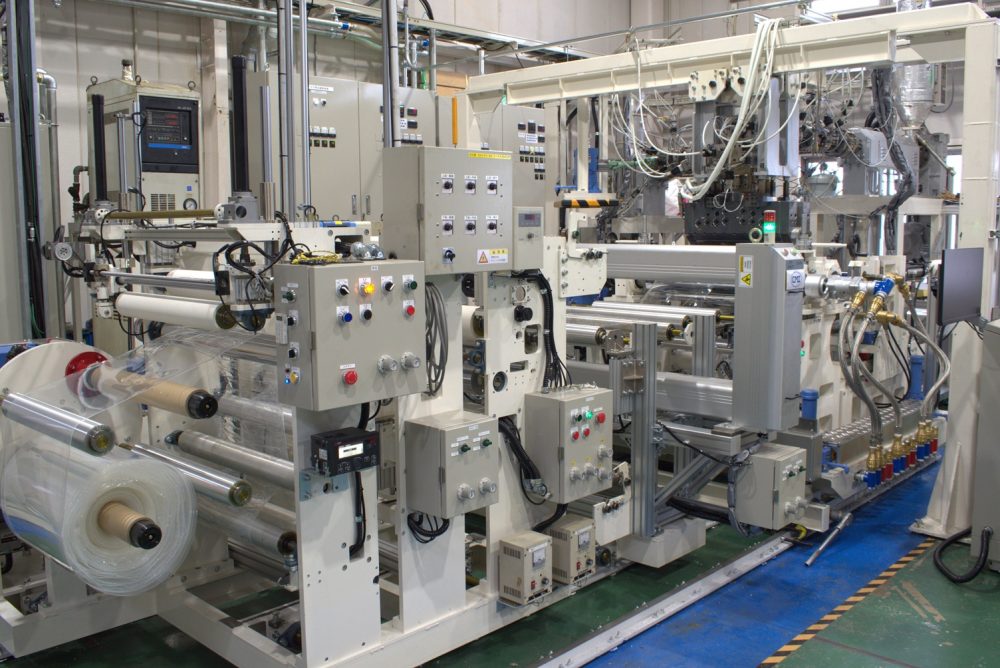

Sleeve touch manufacturing equipment
It is possible to laminate masking film to both side.
Testing using SF rolls is also possible.
| Extruder (2 units) | Φ50mm Non-vent or vent type Output: 35kg/h (per 1unit) Width of T-die: 600mm |
| Forming unit | Roll length: 800mm Line speed: 50m/min (MAX) Servomotor sectional drive system |
| Winder | 2 shaft turret winder Diameter : Φ400(MAX) |
Precision multi coater
It is a coating machine that can be used for various coating methods.
Testing using SF rolls is also possible.
| Coater | Combination type coating equipment Die coater, Gravure coater, and Doctor coater |
| Laminate | Dry and Wet laminater |
| Dry | Air nozzle UV |
| Roll length | ９００ｍｍ |
